Nylon 6 Tubing

Our Nylon 6 tubes are manufactured from high-quality polyamide 6 (PA 6) granules through precision extrusion processes. Known for their excellent mechanical strength, high rigidity, and outstanding wear resistance, Nylon 6 tubes also offer good chemical resistance. However, they have a relatively higher water absorption rate compared to other polyamide tubes, which may affect dimensional stability in humid environments.

Mainly used in pneumatic systems, hydraulic systems, automotive industries, and mechanical engineering where high strength and durability are required.

  • Material:
    Nylon 6 (PA6)
  • Hardness:
    ShoreD 70-80
  • OEM Size range:
    4mm to 16mm
Specifications

Specification

● Composition: Polyamide 6 (PA6)

● Durometer: Approx. 75-80 Shore D

● Service temperature range: -40℃ to +100℃

● Fluid admitted: Air, water, oils, chemicals

Detailed instructions

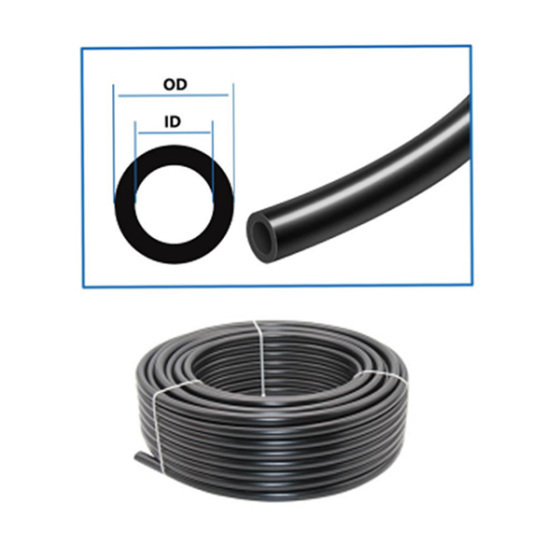

No. Tube O.D
(mm)
Tube I.D
(mm)
Wall Thickness
(mm)
Working Pressure 23°C
(Bar)
Burst Pressure 23°C
(Bar)
Bend Radius
(mm)
N6R0425 4 2.5 0.75 38 114 30
N6R0420 4 2 1 55 165 25
N6R0530 5 3 1 42 126 30
N6R0640 6 4 1 33 99 45
N6R0860 8 6 1 24 72 65
N6R0855 8 5.5 1.25 30 90 62
N6R1080 10 8 1 19 57 80
N6R1075 10 7.5 1.25 23 69 75
N6R1070 10 7 1.5 29 87 70
N6R1210 12 10 1 15 45 110
N6R1209 12 9 1.5 24 72 100
N6R1411 14 11 1.5 20 60 100
N6R1512 15 12 1.5 19 57 120
N6R1613 16 13 1.5 17 51 150
N6R1814 18 14 2 20 60 170

▲ The above listings are only the most basic sizes or styles of the products we offer you. We support customization, please contact us.

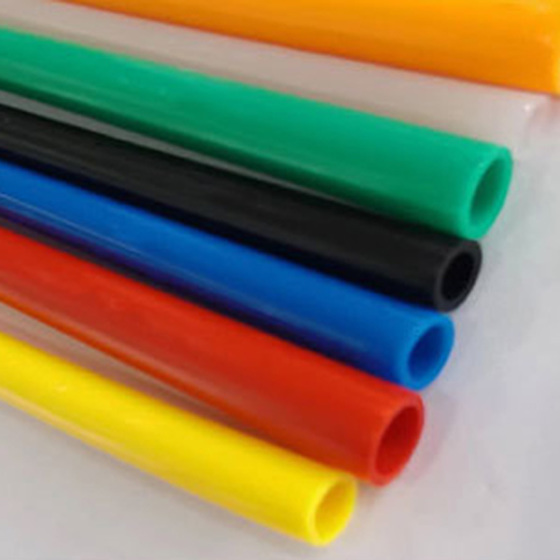

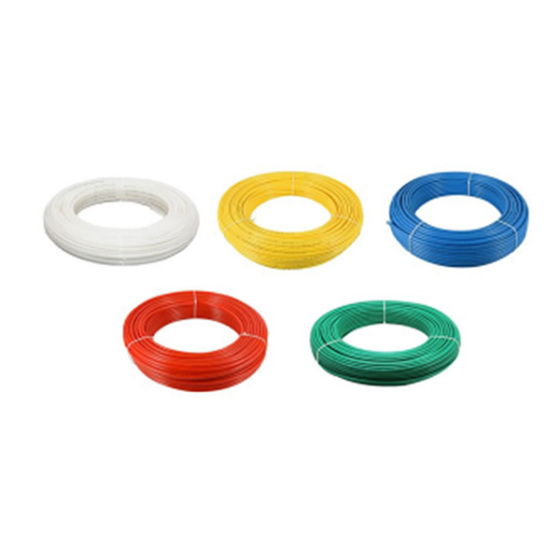

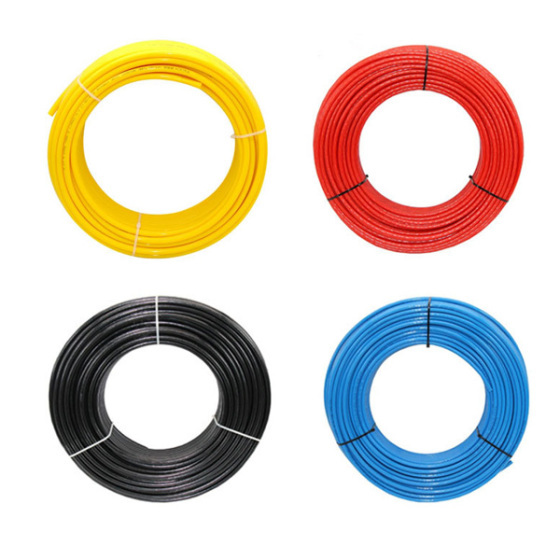

Color

Black Dark blue Blue Clear blue Clear Green Red Orange Yellow

▲ You can use the Pantone Matching System to help us determine the color you want.

Benefits & Features

Features

PA6 tubes provide excellent abrasion resistance and mechanical strength, making them ideal for high-pressure and high-load applications. Their flexibility allows easy installation, though they may absorb moisture which could affect long-term dimensional stability.

Applications

● Pneumatic control systems

● Hydraulic fluid lines

● Automotive fuel and brake systems

● Machinery and mechanical engineering

● Cable and wire protection

● Industrial equipment pipelines

● Construction machinery
