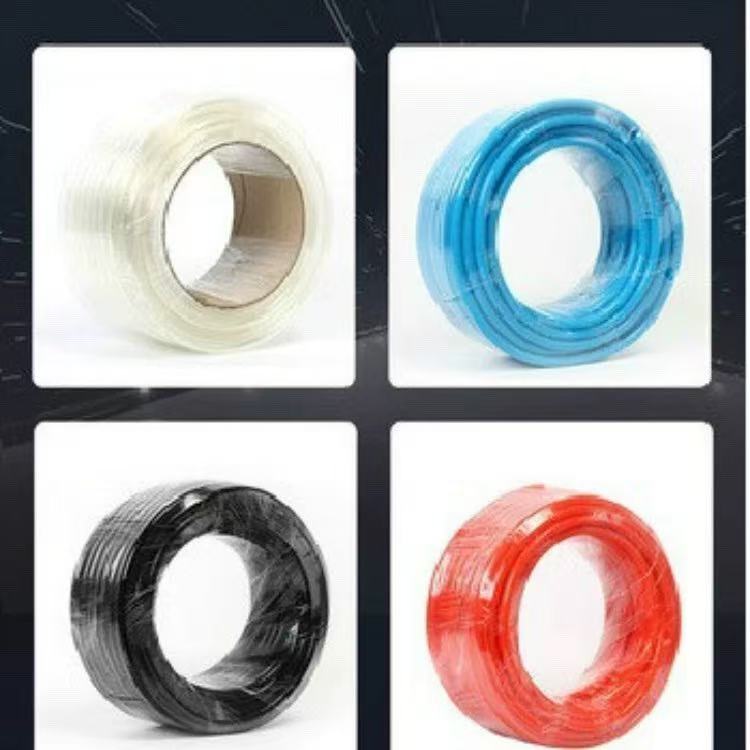

Our polyurethane tubes are made of high quality TPU granules through extrusion process, available in polyester and polyether formulations, both of which are made of non-toxic raw materials. They are extremely resistant to abrasion, tearing, impact and radiation, and have high resilience.
Mainly used in pneumatic systems, hydraulic systems, automated production lines and robotic applications.
● Composition:nonflammable Polyurethane(equivalent to UL94 V-O)
● Durometer:
Plant Instrumentation
97 Shore A;
● Service temperature range:from-15 to 70C (No freezing):
● Fluid admitted: Compressed air.
| No. | OD mm | ID mm | Thickness mm | Reel length | Net wright g/M | Min.Burst pressure bar at 20℃ | Max working pressure bar at 20℃ | Min bend radius mm at 20℃ |
| 0425 | 4 | 2.5 | 0.75 | 200 | 10 | 25 | 10 | 10 |
| 0640 | 6 | 4 | 1 | 100 | 20 | 25 | 10 | 15 |
| 0850 | 8 | 5.5 | 1.5 | 100 | 49 | 25 | 10 | 25 |
| 1065 | 10 | 6.5 | 1.75 | 100 | 59 | 25 | 10 | 30 |
| 1280 | 12 | 8 | 2 | 100 | 82 | 25 | 10 | 35 |
| Black |

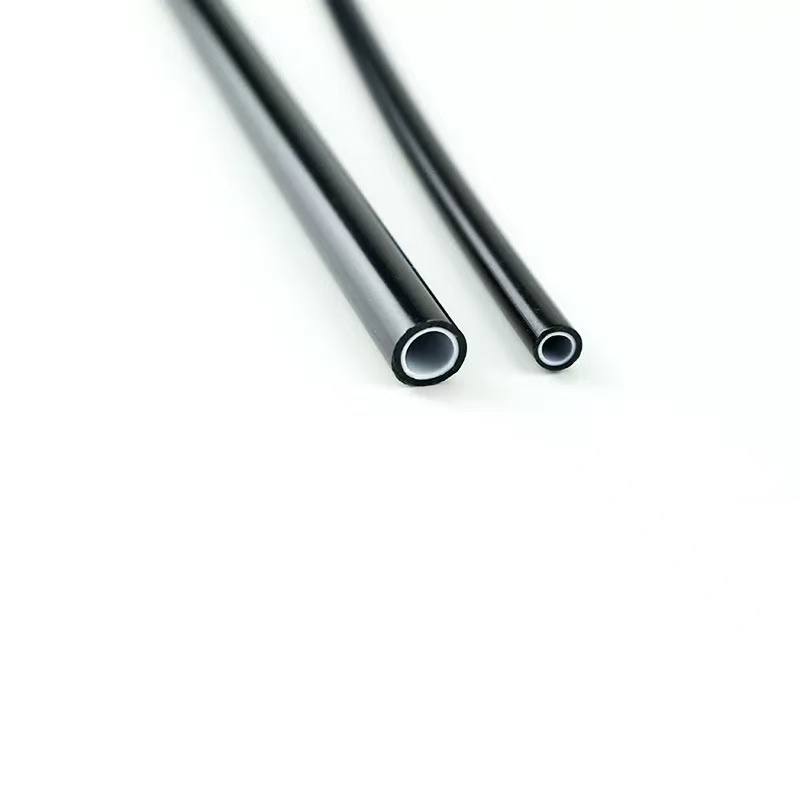

The Anti-Spark polyurethane Tube is made of nonflammable Polyurethane (equivalent to UL94 V-O), it is excels in flame-resistant and spatter resistance, is ideal for piping the welding machinery.
● Pneumatic systems, air tools
● Vacuum
● Automation
● Paint supply lines
● Construction applications
● Motion control devices
