Stainless steel rotary one-touch fittings provide straight, elbow and inline pneumatic connections for equipment with rotating or moving parts. RC, RL and RMF are standard types, while HRC, HRL and HRMF are high-speed versions.
Pneumatic tubing on a moving arm, rotary table or turning fixture can twist when an ordinary fixed fitting is used. These stainless steel rotary fittings provide a practical connection for moving positions while keeping the air line compact and properly routed.

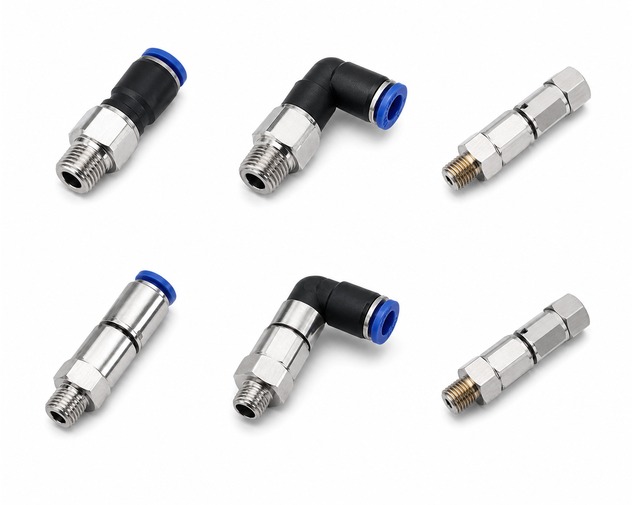

RC, RL and RMF are the standard rotary models. HRC, HRL and HRMF are the corresponding high-speed types. Straight, elbow and inline configurations are available, with metric and inch selections for different pneumatic systems.
RC and HRC are straight tube-to-thread rotary fittings. RL and HRL use a 90-degree elbow body where the tube needs to leave the port from the side. RMF and HRMF provide an inline threaded rotary connection. The H prefix identifies the high-speed version of each body style.
The fittings are intended for compressed air. The working pressure range is 0 to 0.9 MPa, the proof pressure is 1.32 MPa, and the applicable ambient and fluid temperature range is 0 to 60 C. Available selections cover metric and inch tube systems, with M5, G, R, PT and NPT thread options. PU and PE pneumatic tubing can be selected according to the required size.
Choose RC or HRC when the tube runs straight from the port. Select RL or HRL for a 90-degree tube route. RMF or HRMF is used for an inline threaded connection. Before ordering, confirm the operating-speed type, tube outside diameter, thread standard and installation direction.
