KSH / KSL Type Rotary Push-to-Connect Fittings

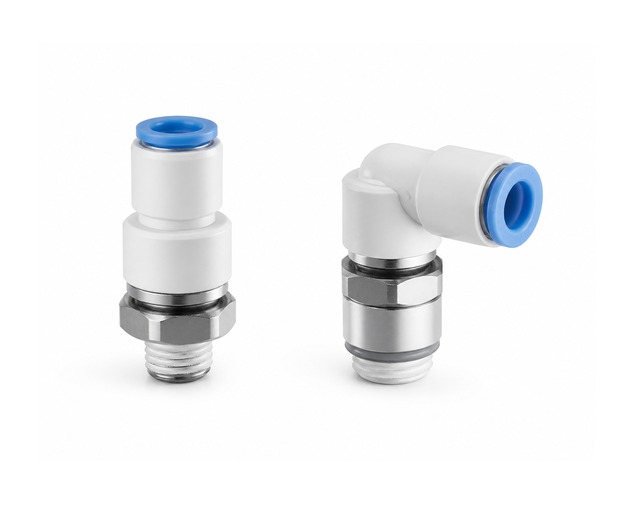

KSH and KSL type rotary push-to-connect fittings are used where a tube connection may need to turn after installation. KSH is the straight type, and KSL is the elbow type.
Specifications
KSH / KSL Type Rotary Push-to-Connect Fittings
KSH and KSL fittings are small rotary push-in fittings for pneumatic tube lines. They are useful when the tube direction is not fixed, or when the tube may need a little movement during machine assembly and adjustment.
KSH is the straight rotary type. It is used when the tube comes out in the same general direction as the threaded port. KSL is the elbow rotary type. It is used when the tube needs to turn at the port, but the outlet angle may still need to be adjusted.
The tube side uses a push-to-connect structure. The threaded side is mounted into the air component, valve block, cylinder port, or other pneumatic equipment. After the fitting is tightened, the tube direction can be arranged more easily than with a fixed fitting.
These fittings are often used around compact cylinders, small valves, pneumatic jigs, testing fixtures, and air-line layouts where the tube position may change slightly during installation.
Specifications
Benefits & Features
Benefits and Features
- Rotary body helps adjust the tube direction after installation.
- KSH is suitable for straight tube routing from a threaded port.
- KSL is suitable for 90-degree tube routing in compact spaces.
- Push-in tube connection makes installation and tube removal simple.
- Compact design helps reduce stress on air tubing.
- Suitable for pneumatic equipment, valve blocks, cylinders, fixtures, and small automation systems.
