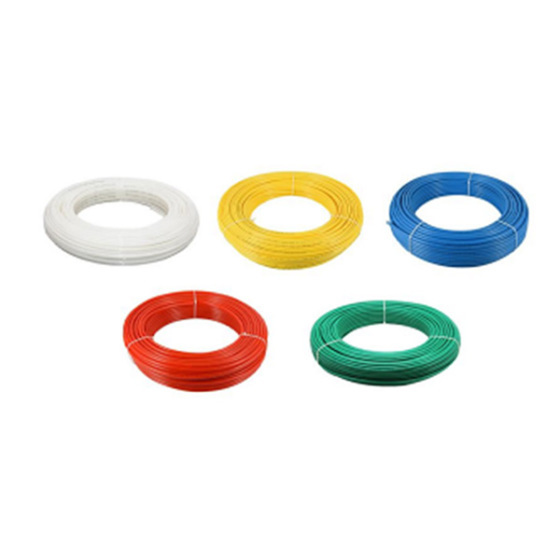

Nylon 12 Tubing

Our Nylon 12 tubes are produced from high-grade polyamide 12 (PA 12) granules using advanced extrusion technology. Nylon 12 tubes are well-known for their excellent flexibility, extremely low moisture absorption, superior chemical resistance, and outstanding dimensional stability. They perform consistently even under low temperatures, making them the ideal choice for demanding environments.

Main applications include pneumatic control, automotive fuel and air brake systems, medical devices, and automation equipment.

Material：

Nylon 12 (PA12)
Hardness：

Shore D 65–75
OEM Size range:

4mm to 16mm

Find a Dealer Leave a message aisiliPneumatic@gmail.com

Specifications

Specification

● Composition: Polyamide 6 (PA6)

● Durometer: Approx. 75-80 Shore D

● Service temperature range: -40℃ to +100℃

● Fluid admitted: Air, water, oils, chemicals

Detailed instructions

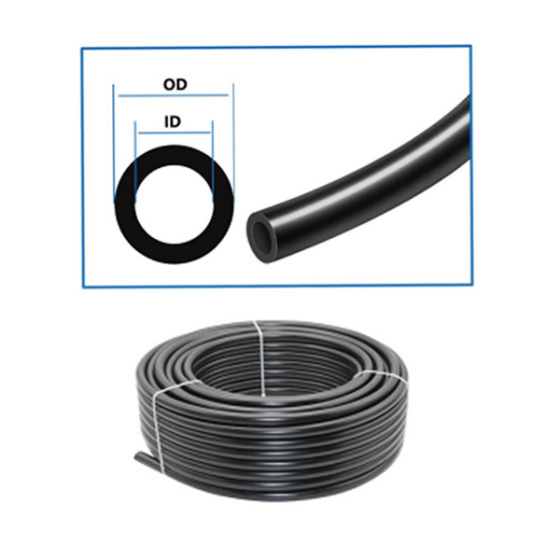

Part Number	Tube O.D (mm)	Tube I.D (mm)	Wall Thickness (mm)	Working Pressure 23°C (Bar)	Burst Pressure 23°C (Bar)	Bend Radius (mm)
N12R0427	4	2.7	0.65	26	78	25
N12R0640	6	4	1	26	78	35
N12R0850	8	5	1.5	30	90	45
N12R0860	8	6	1	20	60	55
N12R1075	10	7.5	1.25	15	45	75
N12SR1080	10	8	1	13	39	60
N12R1290	12	9	1.5	24	72	70
N12R1210	12	10	1	10	30	85
N12R1411	14	11	1.5	15	45	85
N12R1613	16	13	1.5	12	36	115
N12R1815	18	15	1.5	10	30	140
N12R2016	20	16	2	14	42	140

▲ The above listings are only the most basic sizes or styles of the products we offer you. We support customization, please contact us.

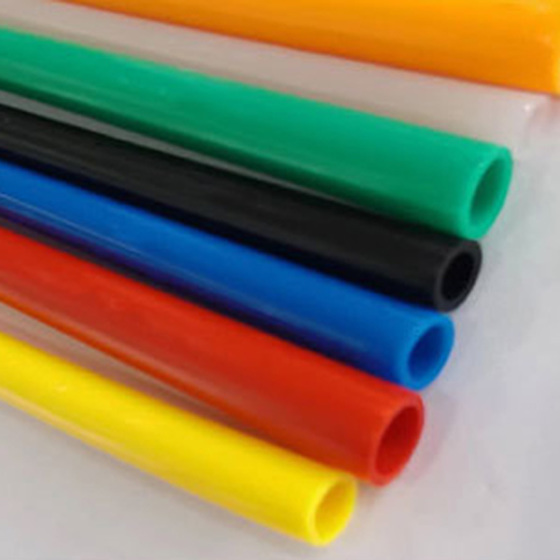

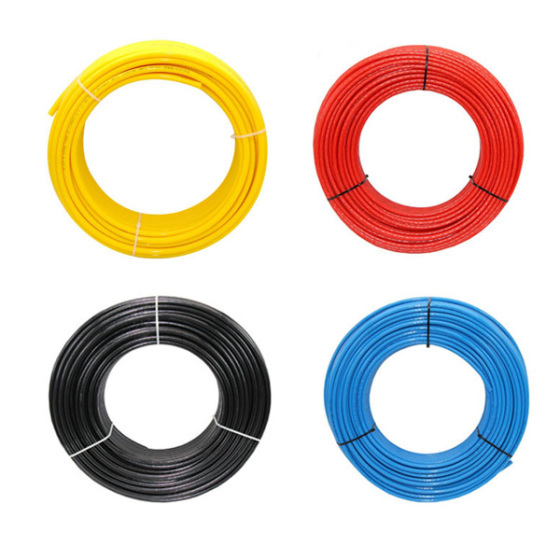

Color

Black

Dark blue

Blue

Clear blue

Clear

Green

Red

Orange

Yellow

▲ You can use the Pantone Matching System to help us determine the color you want.

Benefits & Features

Features

Nylon 12 tubes exhibit superior flexibility, excellent resistance to chemicals and hydrocarbons, and outstanding low-temperature performance. They are also highly resistant to UV radiation and cracking, making them perfect for both indoor and outdoor use. Their extremely low water absorption (<0.5%) ensures dimensional stability over time.

Applications

● Pneumatic systems

● Automotive fuel lines and brake systems

● Hydraulic hoses

● Automation and robotic arms

● Chemical and fluid transfer lines

● Medical equipment

● Cable protection systems

● Low-temperature environments
