PV Series Union Elbow Push-to-Connect Fittings (PV, PVN)

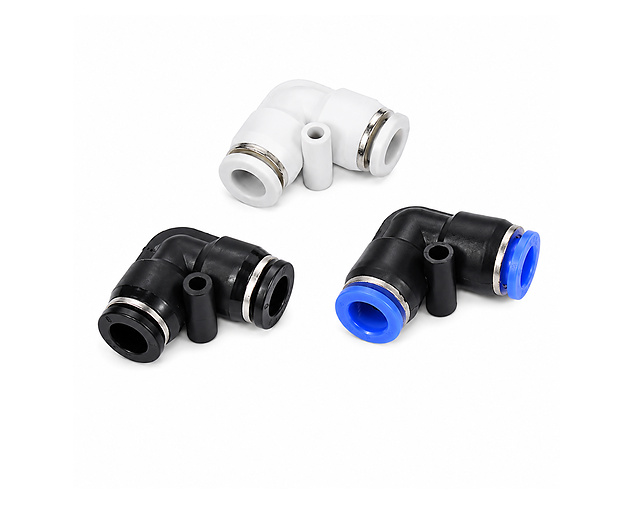

PV Series Union Elbow Push-to-Connect Fittings
PV and PVN are used when two air tubes need to meet at a corner. The fitting does the turn, so the tube does not have to be bent hard around the machine body.
PV is the same-size type. It is used for a right-angle connection between two tubes with the same outside diameter.
PVN is the reducing type. One side is larger and the other side is smaller, so the tube size can change at the corner. It is useful when there is not much space for two separate fittings.
You may see these fittings in control boxes, near cylinders, beside small valve groups, or anywhere the tube path has to stay close to the equipment.
