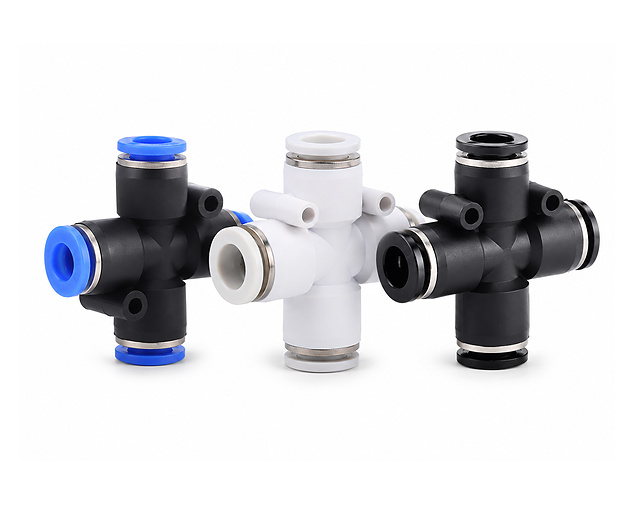

PXL Series Cross Union Push-to-Connect Fitting (PZA Type)

PXL Series Cross Union Push-to-Connect Fitting

PXL is a four-way tube fitting. It lets pneumatic tubes come in from different directions and meet in the same compact body.

This cross union style may also be searched as PZA union cross or PZ cross fitting. The naming can vary by catalog, but the function is the same: a four-port tube-to-tube connection.

This fitting is useful in a compact air-line layout. For example, it can be used near a small valve group, inside a control box, or around a machine section where several tubes need to be arranged from one crossing point.

All ports are for pneumatic tubing. Select the model by the tube outside diameter. The tube should be cut square before it is inserted, especially when the line will be used for long hours or moved often.

PXL cross unions are commonly used in automation equipment, packaging machines, textile machines, air panels and general pneumatic piping.
