How Extrusion Processing Determines the Quality of Polyurethane Pneumatic Tubing

For the pneumatic system builder and the industrial buyer of pneumatic tubing the quality of the tubing is more than just moving air. Substandard tubing can lead to leakage, unsatisfactory bending, cracking and premature failure. When selecting Polyurethane Pneumatic Tubing many customers consider diameter, color and price. However, the manufacturing process of the tubing is the most important factor determining its quality. The TPU extrusion process, material quality, cooling and the quality control during the final inspection are the decisive factors for the pneumatic tubing used in automation equipment and industrial applications.

Why does extrusion processing matter in polyurethane tubing manufacturing?

The process of making polyurethane tubing is called extrusion. This production method is used to form the raw TPU material into a finished tube with defined dimensions and mechanical characteristics.

How does the tube extrusion process shape tubing performance?

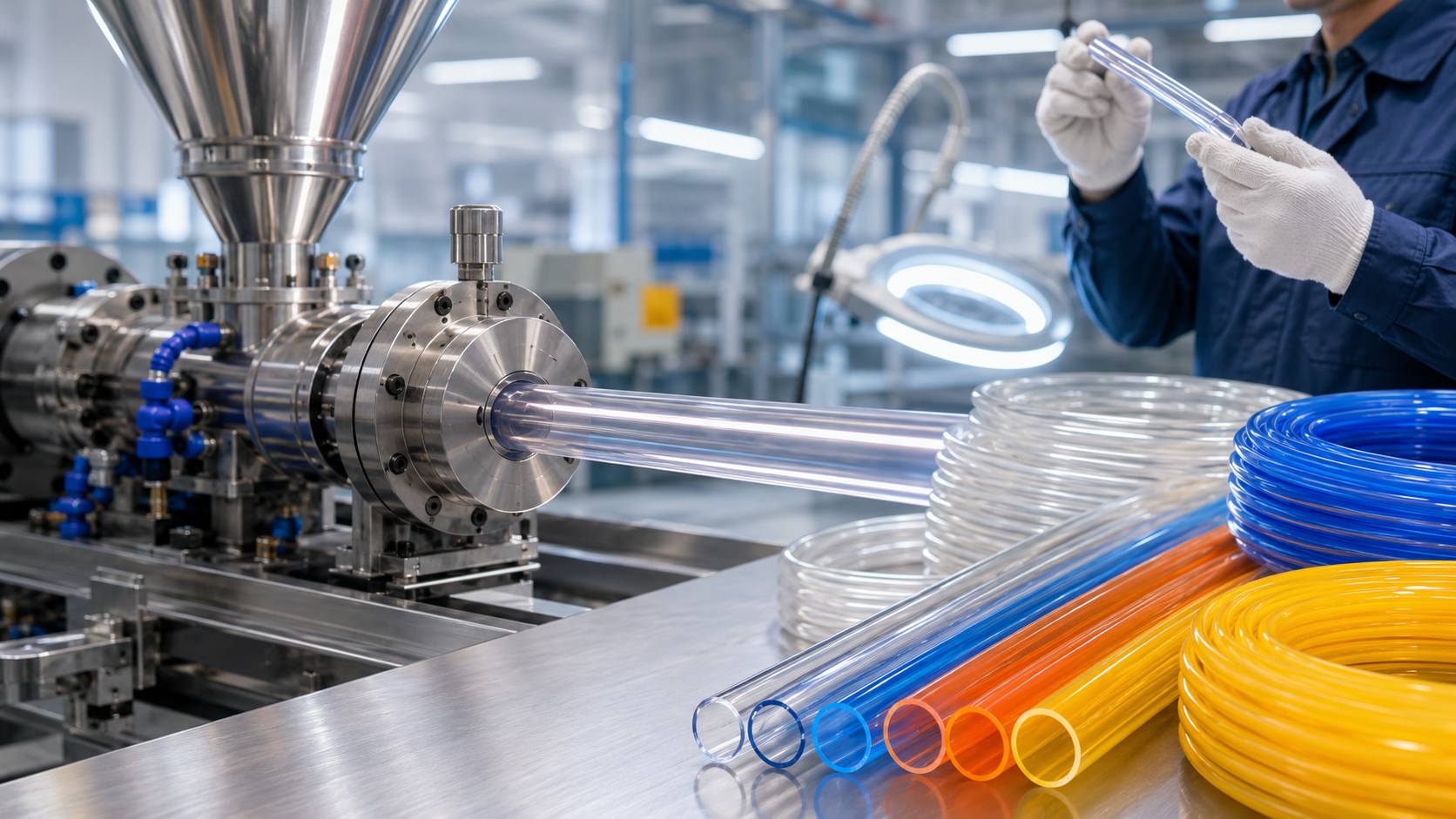

During extrusion, polyurethane material is heated, melted, and pushed through a specially designed die to create a continuous tube profile. The accuracy of this process affects wall thickness, inner diameter, outer diameter, and overall consistency.

Dimensional accuracy is critical for pneumatic applications. It is important that the tubing fits the fittings correctly. The smallest change in dimension of tubing can affect the connection and the seal.

The process of extrusion also has an effect on flexibility of the tubing. For example, polyurethane tubing is chosen often because it is not only abrasion resistant but also flexible. However, the flexibility of tubing made from this material depends very much on the formula of the material and the production controls used, rather than on the generic name of the material alone.

What role does TPU material preparation play before extrusion?

The quality of the final tube begins before it even enters the extrusion machine. Proper handling of the TPU resin is critical to assure the best possible processing outcome, since material and moisture content can affect results severely.

Materials for production are usually stored under appropriate conditions, such as drying and temperature storage. If materials are not stored and prepared properly before production, problems can occur during the extrusion process. These problems can affect surface quality, strength and consistency of the produced tubes.

Polyurethane tubing is manufactured with a combination of suitable machinery and experience in the manufacturing process.

What production steps affect the quality of TPU pneumatic tubing?

The production of TPU tubes comprises several individual steps. These single steps can affect the end product.

How do temperature control and cooling affect extrusion results?

Temperature management is one of the key factors in TPU extrusion. The material needs to be at the appropriate melting temperature in order for it to be able to flow properly through the die.

Temperature must be controlled in order to prevent defects such as inaccurate surfaces or dimensions. Also, after the extrusion process, the cooling of the tubes has to be set in a way that they can keep their shape best.

A stable cooling process is crucial for ensuring accurate dimensions and minimal variation between batches.

Why are extrusion dies important for polyurethane tubing production?

The extrusion die determines the basic outer dimensions of the tube. The cross section of the die determines the surface quality and the tube wall thickness homogeneity.

A well-maintained die is crucial for continued high volume production with minimal defects. Proper die adjustment is critical and routine inspection and adjustment of the manufacturing equipment and process is required to maintain consistent quality production.

For buyers, a supplier’s production capability is an important evaluation criterion when selecting a supplier for tubes.

What common extrusion defects can occur in polyurethane tubing?

Even with suitable materials problems during extrusion can occur because of unsuitable production conditions.

What causes extrusion defects in polyurethane tubing?

There are some common problems that occur when extruding such long profiles. Some of the most common problems are unequal wall thickness, surface defects such as scratches and bubble formation, and problems with the dimensions of the profiles. These problems can occur for a variety of reasons, such as problems with the material, problems with the machine, problems with the die, and problems with the cooling system.

Some defects can affect the pneumatic tubing in terms of the installation and the usage afterwards. For example the pneumatic tubing with defects of inconsistent dimensions can cause problems with the fitting connections. The surface defects can be prone to bending, and may get damaged with repeated bending.

With the same kind of defect different causes can exist and the understanding of these requires production experience.

How can manufacturers reduce quality variation?

Variation can only be reduced by controlling the process and checking at all stages of production, not just on finished products.

Typically a manufacturer monitors raw materials, extrusion parameters, cooling process and end dimension measurements. By inspecting the produced tubing after production it can be checked if the requirements for the customer are met.

Reviewing a supplier’s inspection process as a buyer can help you get a sense of their production consistency.

How should buyers evaluate polyurethane pneumatic tubing suppliers?

Choosing a supplier for your tubing is more than just choosing the lowest price for your part. The true value of your supplier is found in their ability to make a quality part, their ability to support you after the sale, and their ability to control quality on every part they make.

What specifications should buyers confirm before ordering?

Before you buy, make sure you have confirmed the following details:

Pneumatic systems are generally different and have different requirements. For pneumatic tubing on a robotic compared to fixed industrial machinery different characteristics are needed.

Why do testing and documentation matter?

Technical documents supplied to potential buyers enable them to check whether the tubing in question is suitable for their specific application. These documents contain information on dimensions, material properties and production standards enabling an engineering evaluation.

Testing also gives an indication as to whether the product is stable enough for the circumstances in which it will be used. For industrial customers clear documentation is important to prevent problems with communication before purchasing and installing the product.

How can extrusion technology influence the service life of pneumatic tubing?

The service life of polyurethane tubing is influenced by operating conditions and by manufacturing quality.

How does extrusion consistency affect long-term use?

A tube with consistent dimensions and a consistent structure will function consistently during installation and service life. Variation between batches can cause problems during change over of tubing or even when expanding your production lines.

When large equipment projects are being managed by a company, consistency may be more important than the performance of the individual tubes.

What limitations should users consider?

Polyurethane tubing is suitable for many applications in the field of pneumatic. However, not all areas are to be covered by this type of tubing. In extreme temperature areas, with highly aggressive media, or with unsuitable pressure, there are other types of tubing that are more suitable.

Before making a selection for the tubing, users should familiarize themselves with the working environment in which the tubing will actually be used; tubing is commonly selected based on past usage with similar tubing however this may not be the best tubing for a given application.

How can Yantai Aisili New Material Co., Ltd. support customers looking for polyurethane tubing solutions?

Yantai Aisili New Material Co., Ltd. of China supplier for Polyurethane tubing. We provide pneumatic tubing for selecting and manufacturing on customer’s requirement. Our team is working with buyer who need tubing for industrial use and assist for information of specifying, customization and producing. When comparing suppliers, you should pay attention to listed information of technical, consistent quality products, how you arrange for delivery and what you expect from service.

Conclusion

The quality of Polyurethane Pneumatic Tubing is greatly determined by the extrusion process. Proper preparation of the material, accurate control of temperature, suitable die design and stringent inspection procedures during the extrusion process all play important roles to produce a reliable TPU tubing with consistant dimension and suitable characteristics to be used in pneumatic application. Therefore buyer must consider not only product specifications but also the manufacturer’s capability to produce such quality of tubing and selecting the correct tubing for application.

FAQs

1. How is polyurethane tubing manufactured?

olyurethane tubing is commonly produced through an extrusion process where TPU material is heated, formed through a die, cooled, and inspected before delivery.

2. Why is the TPU extrusion process important?

TPU extrusion affects dimensions, surface quality, flexibility and consistency of TPU tubes. For pneumatic use, all of these aspects are important.

3. What are common extrusion defects in polyurethane tubing?

Some common defects include items that are slightly incorrect in size, have surface marks, contain bubbles, or are otherwise misshapen. Typically these defects caused by issues during material handling or production control.

4. What should buyers check when purchasing pneumatic tubing?

Buyers should check the size, the required pressure, temperature, material properties, flexibility and quality control of the supplier.

5. Is polyurethane tubing suitable for all pneumatic systems?

Our polyurethane tubing is suitable for a wide variety of applications however selection must take into account factors such as operating temperature, chemical exposure, working pressure and method of installation.
