Specification
● Composition:Ester-Based Polyurethane:
● Durometer:90 or 95 or 98 Shore A;
● Service temperature range:from-15~60C (No freezing);
● Fluid admitted: Compressed air.
Detailed instructions
| Prod.No |
O.D.（A）mm |
I.D.（B）mm |
Total Length（C）M |
Coil I.D.（D）mm |
Min.Burst pressure bar at 20℃ |
Max working pressure bar at 20℃ |
| 0425 |
4 |
2.5 |
1M-10M |
26,32,42 |
25 |
10 |
| 0640 |
6 |
4 |
1M-15M |
26,32,42 |
25 |
10 |
| 0850 |
8 |
5 |
1M-20M |
32，42，48 |
25 |
10 |
| 1065 |
10 |
6.5 |
3M-20M |
32,42，46 |
25 |
10 |
| 1280 |
12 |
8 |
3M-20M |
38,42,46 |
25 |
10 |
| 1410 |
14 |
9.5 |
3M-15M |
46，58 |
25 |
10 |
| 1612 |
16 |
11 |
3M-15M |
46，58 |
25 |
10 |
▲ Above listed are just refered the most basic sizes or styles of our products to you.
Color
| Black |
Dark blue |
Blue |
Clear blue |
Clear |
Green |
Red |
Orange |
Yellow |
Features

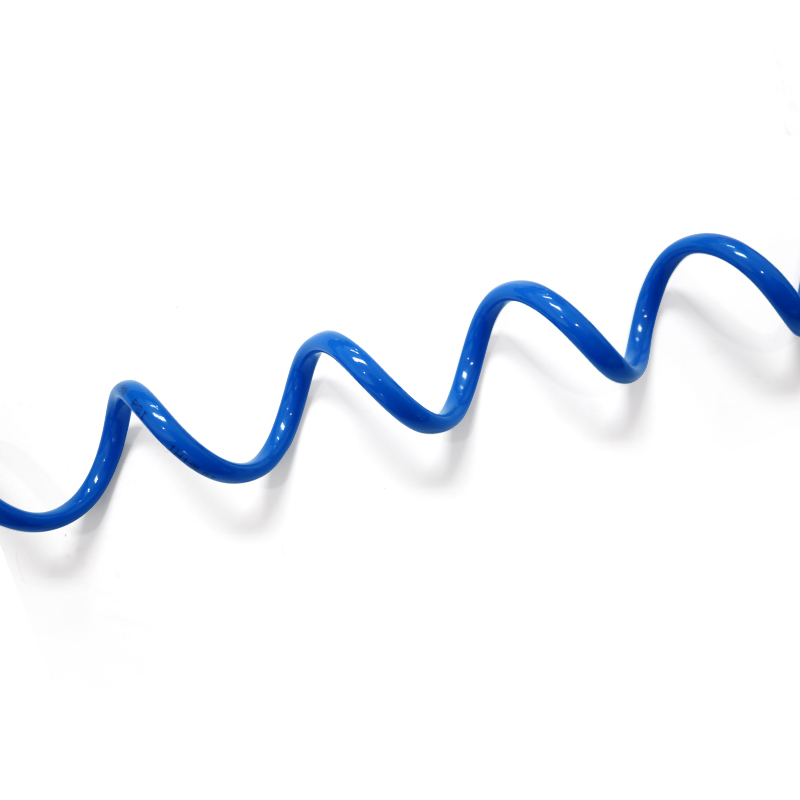

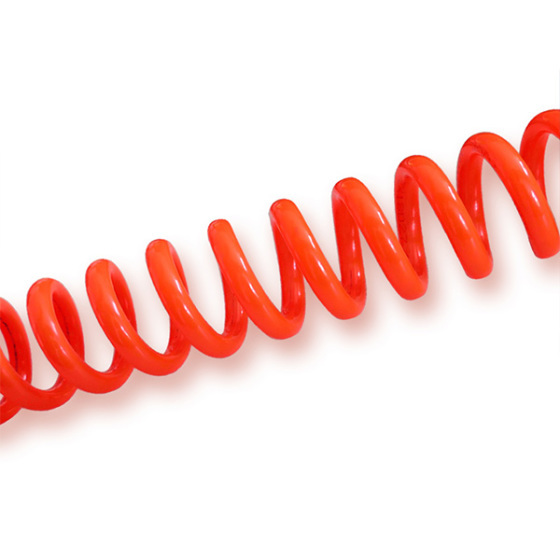

The Coiling Tube is suitable for piping of air guns, air screwdrivers and other air tools. Also,piping of movable parts can be achieved within limited spaces without distorting the joints. There are the urethane type featuring flexibility and the nylon type excelling in restoring force.
Applications
● Pneumatic systems, air tools
● Vacuum
● Automation
● Plant Instrumentation
● Paint supply lines
● Construction applications
● Motion control devices
Advantages of Polyurethane Over Other Materials
Compared with traditional PVC or rubber air hoses, polyurethane tubing offers several performance benefits.
Polyurethane has significantly better abrasion resistance, allowing it to withstand repeated movement and friction in industrial environments. It also maintains flexibility even at lower temperatures, which helps prevent cracking or hardening during operation.
In addition, polyurethane tubing typically has higher tear strength and longer service life, reducing the frequency of replacement in pneumatic systems.
These properties make PU tubing one of the most preferred materials for modern pneumatic applications.
FAQ
What is flexcoil PU tubing used for?
Flexcoil PU tubing is widely used in pneumatic tools, automation equipment, and air compressor systems where flexible and retractable air lines are required.
What is the advantage of spiral PU tubing?
Spiral tubing automatically retracts after extension, preventing tangling and saving workspace.
What sizes are available?
Common sizes include 4×2.5 mm, 6×4 mm, 8×5 mm and custom dimensions.
Custom Flexcoil PU Tubing Solutions
At Yantai Aisili New Material Co., Ltd., we can manufacture flexcoil polyurethane tubing according to different customer requirements.
Customization options include:
Tubing diameter
Coil diameter
Working length
Extension length
Color
Hardness adjustment
Special packaging
Our technical team can also recommend suitable tubing specifications based on your pneumatic system requirements.
Quality Control and Manufacturing
Our polyurethane pneumatic tubing is produced using stable extrusion technology and strict quality control procedures.
Each batch of tubing is tested to ensure consistent material properties, dimensional accuracy, and reliable pressure performance. The finished products are inspected before shipment to guarantee stable quality for industrial applications.
Why Choose Aisili Pneumatic Tubing
With years of experience in polyurethane material manufacturing, we focus on producing durable and reliable pneumatic tubing solutions for industrial customers worldwide.
Our advantages include:
Stable polyurethane raw materials
Consistent extrusion quality
Flexible customization capabilities
Reliable delivery time
Professional technical support
Our flexcoil PU tubing has been supplied to customers in automation, manufacturing, and machinery industries in multiple countries.
Request a Quote for Flexcoil PU Tubing
If you are looking for high-quality spiral polyurethane pneumatic tubing for pneumatic tools or automation equipment, feel free to contact us for more information.
Our team will be happy to provide product specifications, samples, and quotation according to your requirements.
