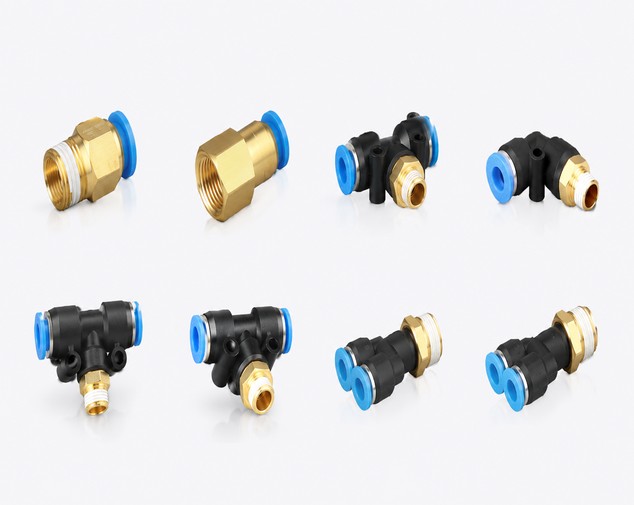

IP Series Model Guide
| Model |
Catalog Name |
Connection Style |
| IPC |
Iron Fitting |
Tube × male thread, straight type |
| IPCF |
Iron Fitting |
Tube × female thread, straight type |
| IPB |
Iron Fitting |
Tube × tube × male thread branch type |
| IPL |
Iron Fitting |
Tube × male thread elbow type |
| IPLF |
Iron Fitting |
Tube × female thread elbow type |
| IPX |
Iron Fitting |
Tube × male thread branch / union style type |
Specifications
The catalog page lists these IP Series models in metric tube and thread sizes.
IPC Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
IPCF Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
IPB Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
IPL Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
IPLF Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
IPX Series Iron Fitting
Metric Type — Tube O.D. × Thread Size:
4-M5, 4-01, 4-02
6-M5, 6-01, 6-02, 6-03, 6-04
8-01, 8-02, 8-03, 8-04
10-01, 10-02, 10-03, 10-04
12-03, 12-04
14-02, 14-03, 14-04
16-02, 16-03, 16-04, 16-06
Size Notes
Metric tube sizes are shown in millimeters. The code before the dash is the tube outside diameter, and the code after the dash is the thread size. Check both measurements before ordering.
Installation Notes
Cut the tube end flat before installation. Push the tube fully into the fitting until it reaches the internal stop, then pull back lightly to confirm that the tube is locked.
Match the thread size to the equipment port before tightening the fitting. Use a suitable wrench on the metal section and avoid forcing the release ring or plastic parts during installation.
Where It Is Used
IP Series metal push-to-connect fittings are used on pneumatic valves, cylinders, manifolds, control cabinets and compact automation equipment where a metal push-in fitting is preferred.
